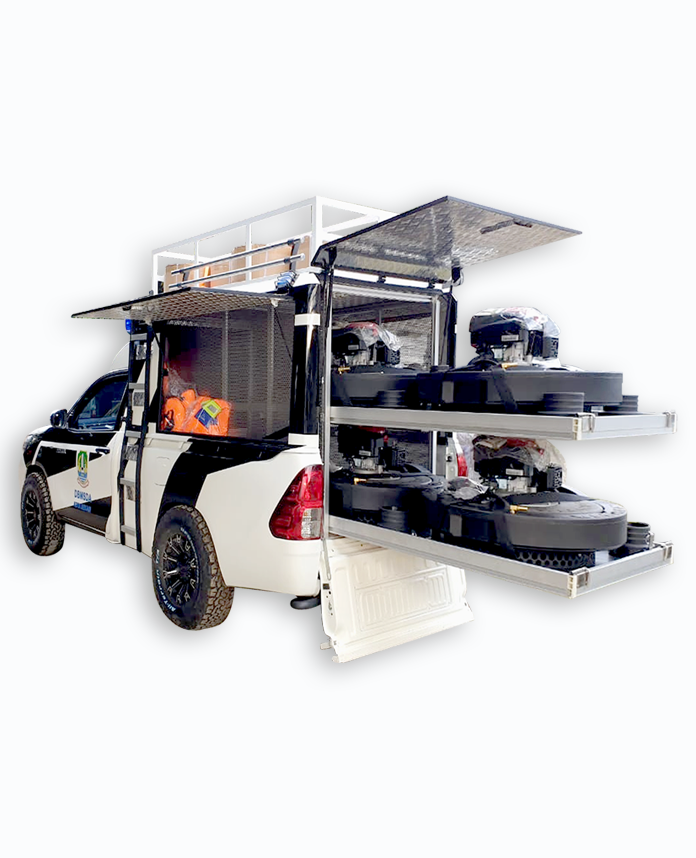

URC Mobile Pumps

This Mobile Pump Very Quick Reaction for flood prevention. It is very suitable to cope with flood conditions:

• Stagnant water on the road due to flooding, which causes traffic jams.

• Inundation of floodwater in people's housing.

• Inundation of floodwaters in urban areas.

• Fire prevention for wetting peatlands.

Features

• Consists of 4 (four) units of the Floating Water pump (water pump).

• Total capacity 12,000 l / minute.

• The capacity/discharge of each floating pump is 3000 liters/minute (3 m3 / minute).

• The weight of each pump is 42 kg.

• Using your own motor, easy to use.

• The length of each standard hose is 100 meters/roll, there are 4 rolls.

• PE Layflat Hose material, 6-inch diameter.

• Each pump is equipped with one (1) additional fuel tank with a gasoline capacity of ± 22 liters so that it can be used continuously for ± 15 hours or pumping ± 2 million liters of water.

• Additional accessories each pump is equipped with 1 set hose bridge.

• The pump is light, portable, and can be carried in the trunk of a car.

• Pumps are compact and economical to use.

• The pump floats on the water and settles down at low tide.

• Stand-alone motor pump engine, no need for electricity.

• The pump body is impact-resistant, so it is durable and long-lasting.

Pump Specification

1. Pump Type: Floating Pump.

2. Pump Brand: WARTHOG

3. Country of origin: Canada.

4. Engine specifications (engine); Brand: KOHLER; Power: 5.5 HP; Type: High Output OHV; Lubrication: Oil Splash; RPM: Variable to 3600 rpm; Emissions: Meets or exceeds all US EPA PH2 & EC Stage II

5. Pump size and material; Pump weight: 42 kg; Length: 915 mm; Width / diameter: 720 mm; Height: 535 mm; Body Material: Polyurethane (Strong material, no easy to crack & resilient); Impeller Material: High Strength Composite.

6. Gear pumps using Steel.

7. Camlock technology allows for a strong Hose connection binding so it doesn't come off easily).

8. The hose is strong and flexible.

9. The product has been certified.

Car Specification TOYOTA Pick up New Hilux S 2.4 Diesel 4x2 M/T

1. Engine / Engine

• Engine type: 2 GD-FTV, 4 cylinders, in Line 16 Valve DOHC with VNT Intercooler.

• Bore x stroke: 92.0 x 90.0 mm

• Fill Cylinders / displacement: 2,393

• Maximum Power: 149.6 /3.400 rpm.

• Maximum engine torque: 35 kgm / 1,400-2800 rpm.

• Fuel System: Common Rail Fuel Injection

• Tank capacity: 65 lt.

• Type: Diesel

• Shaft Distance: 2,750 mm

• Steps: #Front: 1,510 mm #Rear: 1,510 mm

• Suspension: #Front: Double Wishbone #Back: Leaf Spring Rigid Axle.

• Chasis and Transmission; #Control system: 2 WD, #Transmission: 5 M / T;

• Wheels and Wheels: 205/70 R15 Steel; Proposed Wheel: 205/70 R15 Steel.

• Dimensions and Weight; Overall: L x W x H: (4,930 mm x 1,800 mm x 1,685 mm); Shaft distance: 2,750 mm

• Galvanized steel material, thickness min. 1.2 mm, fixed using Silicone adhesive.

• Can accommodate 4 pump units along with hoses and accessories.

• Sliding system for pump access, Hose Rack, Light Bar.

• Variation lights and spotlight.

• Box model.

• Painting the entire body for the color of the vehicle as requested.

• Installation of the logo using 3M scheelite stickers.

• Making the front bumper: plate material and iron pipe.

• Manufacturing of the rear bumper: plate and iron pipes.

• Overall Box Body Dimensions:

• Length of the box: 2350 mm (from rear to cab).

• Box width: 1575 mm.

• Box height: 1800 mm.

• Overall height of the pump car from the ground: ± 2800 mm.

• The overall length of the car from front to rear: ± 5260 mm.
