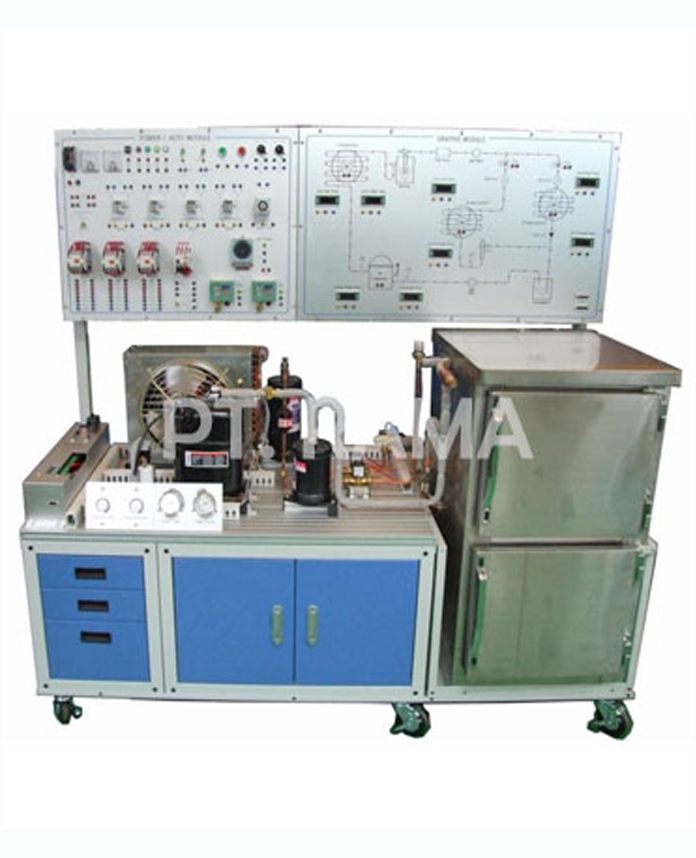

Refrigerator System Trainer
Brand: COZMOS / KOREA
The possibility of the experiment on temperature, pressure, defrosting automatic control, and mechanical trouble in the automatic pressure control device
The comprehension of principle to refrigerator and study to refrigeration and cold system
The experiment on cycle change of refrigeration equipment according to temperature from two parallel evaporators and Mollier diagram drawing in P-1 diagram drawing part.
Theoretical education of a fundamental circuit, application circuit, and experiment with evaporation pressure control device
The compatibility and expandability of the graphic module control
Unlike separated system from machine department, the control department is visual automatic control with the graphic panel and two automatic control modules
Data formation by data auto-saving and P-1 diagram autooperation in the system with the control program
Compressor: 1/2HP,
Condenser: Air-cooled type
Evaporator chamber: pin, Tube air-cooled type
Evaporating Pressure Regulator :1 EA
Expansion Valve: manual type
Liquid receiver: 1 /2HP
Accumulator: 1 HP
Electronic valve : 3/8" nut clamp type
Manometer
Fitting nipple
Sight Glass
Electric control module : DC24V
Graphic module: digital DC24V
Thermostat range: -40°C-100°C
Pressure switch range : Low side : 0bar~5bar; High side : 5bar~30bar
