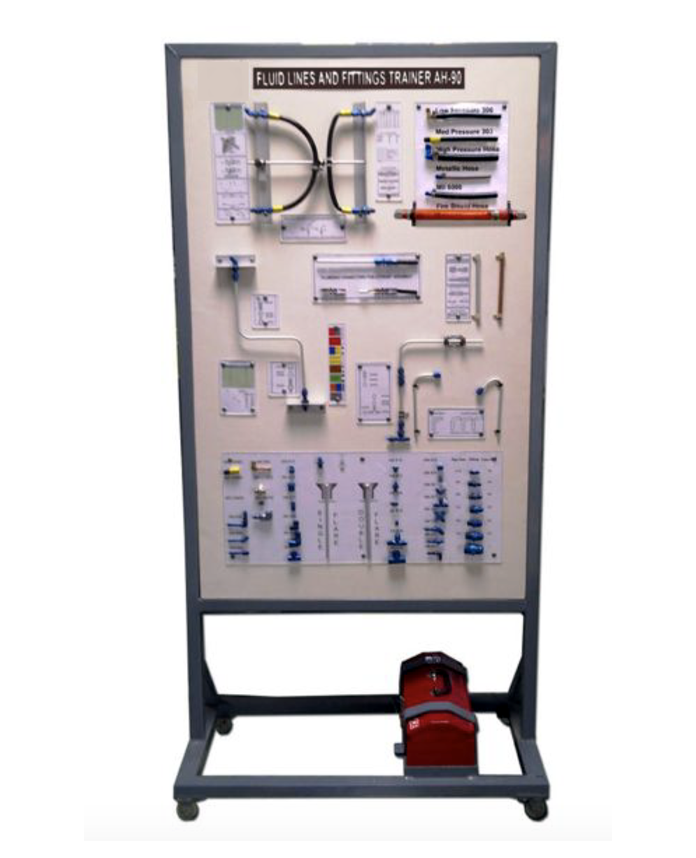

Fluid Lines and Fitting Trainer
Brand: RAMA TECH
Features
Typical errors and faults are seen in assembling lines and fittings
Correct/Incorrect methods of constructing flexible hoses and lines with examples and cutaways show the construction of hose assemblies
Correct/Incorrect methods of constructing rigid lines with examples detailing line-to-fitting and hose connections
Graphic Illustration of proper color code for lines: AN, AC, MS, and Pipe-Thread Fittings illustrated and contrasted
Typical fittings are shown incomplete and cutaway form
Typical fitting-to-line connections shown
Multiple hose types
Small Tool Kit attached to Unit with equipment for assigning classroom projects (Tubing Bender, Cutter, Flaring Tools, and Aeroquip Assembly Tools)
Fully assembled and ready for the classroom
Mounted on an Easy-to-Roll Display/Training Stand
Components
(2) Types of Rigid Lines
(6) Types of Flexible Lines
(21) Different Types of AN Fittings
(5) Different Types of MS Fittings
(6) Different Types of pipe thread Fittings
(6) Different Types of Line-to-Host Connection Fittings
Correct/Incorrect example of Flexible Lines
Correct/Incorrect example of Rigid lines
Training Stand
Requirements
Dimensions L x W x H (mm): 930 x 500 x 1,875
