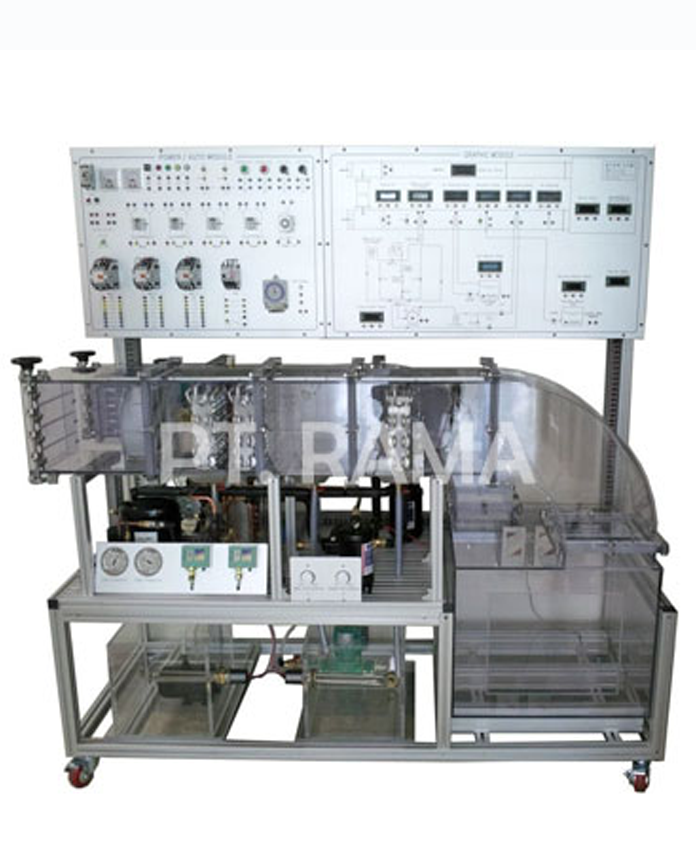

Domestic Air Conditioner Trainer

The simple air conditioning system

Ventilation duct, cross-section 250x250mm

Expansion element selectable using solenoid valves: expansion valve and capillary tubes 1 m

Radial fan with regulating flap

Lamellar evaporator with drip tray

Determination of airflow rate by velocity measurement with Pilot tube 2 temperature sensors, 1 differential pressure transducer

Controllable valves and equipment actuated by software
