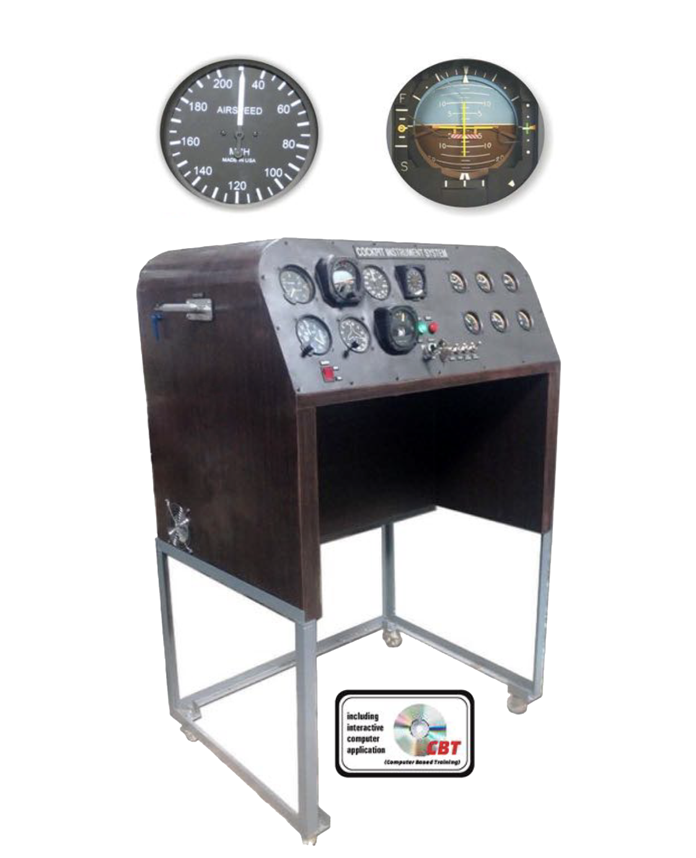

Cockpit Instrumentation System Trainer

Features

• Ready to Plug in and Operate to demonstrate Operations and measurement of Flight and Engine Instruments.

• Instructor manual including student Lab. Practice

• All components mounted on custom roll­-around work stand and cabinet

Components

1. Aircraft Instruments

• Directional gyro

• Attitude indicator

• Airspeed indicator

• Turn and bank indicator

• Altimeter

• Rate-of-climb indicator

• Standby Compass

2. Engine Instruments

• Oil Temperature

• Oil Pressure

• Fuel Level

• CHT Indicator

• Tachometer

• Fuel Pressure

3. Systems

• Vacuum filter/pump

• Vacuum pressure regulator

• Tach generator

• Oil temperature sensor

• Pitot tube

• Fuselage side static port

• Alternate static source

• Static source selector

Requirements

• 220 Volt AC Power Input

• Dimensions L x W x H (mm): 1,000 x 1,000 x 1,200
