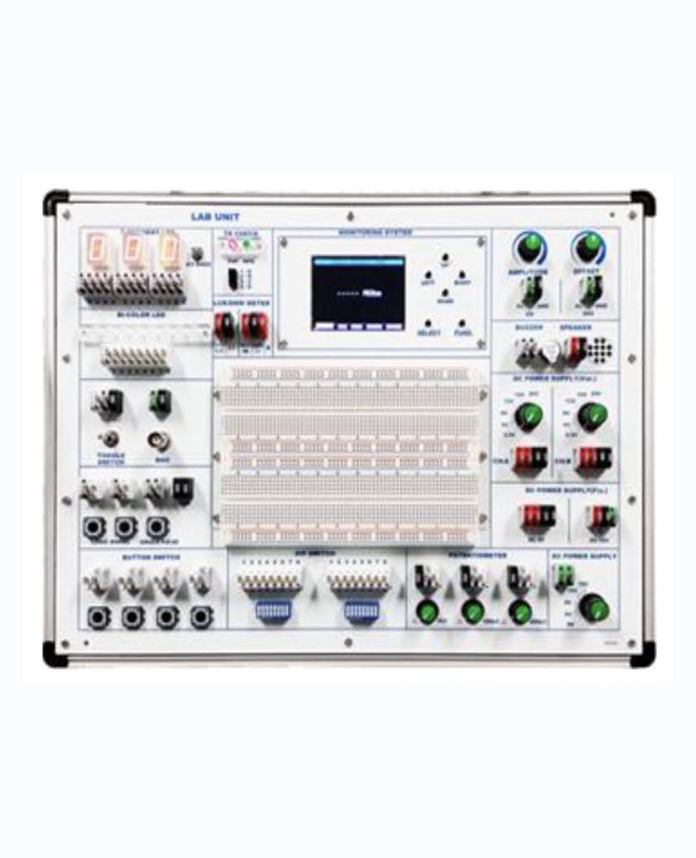

Analog & Digital Circuit Trainer(LD)

Variable Practice for Digital logic and Analog basic circuit integration

Multi Measuring Instrument embedded (Digital Multi Meter, LCR Meter, Function Generator)

DC/AC POWER SUPPLY

FUNCTION GENERATOR: Sine wave, Chopping wave, Square wave, Sawtooth wave, Reversed-sawtooth wave; ECG & Random Noise Output

Logic Indicator

7 SEGMENT LED: HEX-SWITCH, LOGIC SWITCH, LOGIC SIGNAL & PULSE

Logic Input: HEX-SWITCH, LOGIC SWITCH, LOGIC SIGNAL & PULSE I Circuit Elements Toggle SW & BNC & Potentiometer, Buzzer & Speaker, Button Switch

TR Checker

Bread Board
