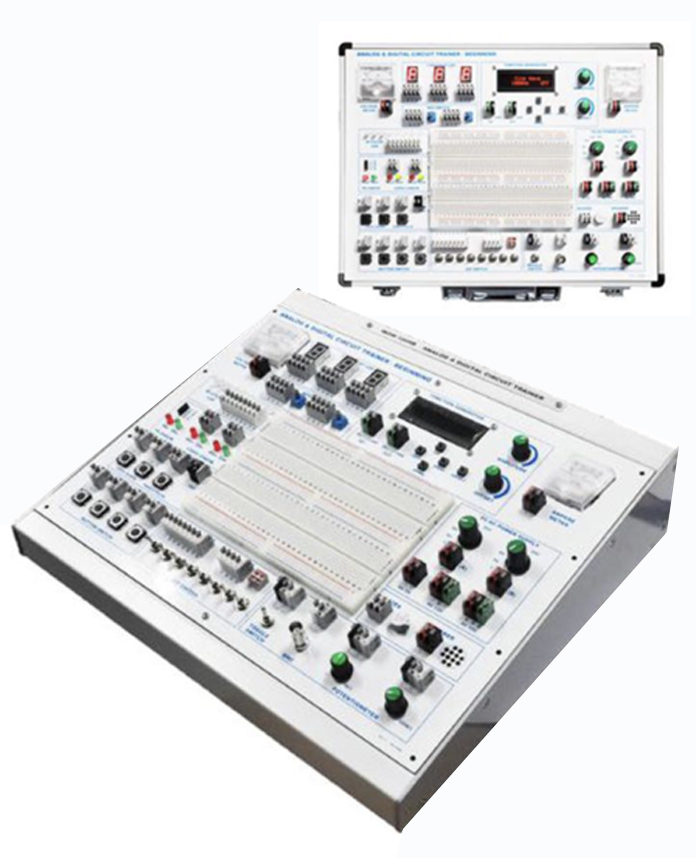

Analog & Digital Circuit Trainer

Variable Practice for Digital logic and Analog basic circuit integration

DC/AC POWER SUPPLY

FUNCTION GENERATOR: Sine wave, Chopping wave, Square wave, Sawtooth wave, Reversed-sawtooth wave, ECG & Random Noise Output

Logic Indicator: 7-SEGMENT LED

HEX-SWITCH, LOGIC SWITCH, LOGIC SIGNAL & PULSE

Logic Input: HEX-SWITCH, LOGIC SWITCH, LOGIC SIGNAL & PULSE

Circuit Elements: Toggle SW & BNC & Potentiometer, Buzzer & Speaker, Button Switch

TR Checker

Bread Board
