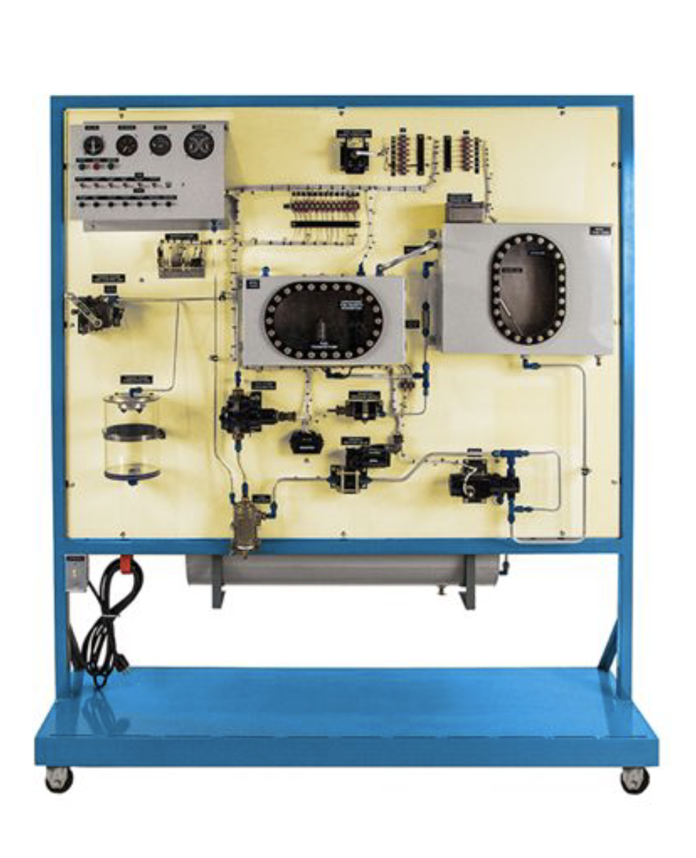

Aircraft Turbine Fuel System

This trainer is designed as an advanced turbine type system that operates like a typical aircraft fuel system and features a fuel management panel, fuel transfer system and capacitance, and resistance fuel quantity indication system.

Features

• Aircraft quality wiring corresponds to diagrams, allowing easy troubleshooting

• The instructor's panel in the rear of the trainer allows the introduction of typical system faults and errors

• All components are mounted on a custom, roll around work stand

• Delivered fully assembled, tested, and ready to plug in and operate

• Instructor and student operations training manuals (with aircraft-style troubleshooting charts, flow schematics, component cutaway diagrams, and all wiring diagrams)

Specifications

• Dimensions (L x W x H): 483 x 1651 x 1705 (mm)

• 110 volt AC with a power input cord to allow easy classroom placement

Components

• Main/ auxiliary fuel tanks

• Fuel management panel with fuel quantity indicators, fuel pressure indicators, fuel flow indicator, system indicator lights, system circuit breakers, and system control switches

• Capacitance type fuel quantity indicating system with signal conditioner, resistance spool, fuel-quantity probe, and indicator

• Turbin FCU section with the throttle, fuel nozzle, and see-through combustion chamber

• Resistance type fuel quantity indicating system with fuel quantity probe

• Turbine type fuel system with fuel boost pump, pressure bypass relief valve, firewall shut-off valve,

• fuel gas collator with drain, and fuel flow transmitter

• Fuel transfer system with fuel transfer pump, transfer pump pressure switch with check valve, automatic transfer pump activation sensor and switch, transfer system timer relay, and transistorised transfer switch.
