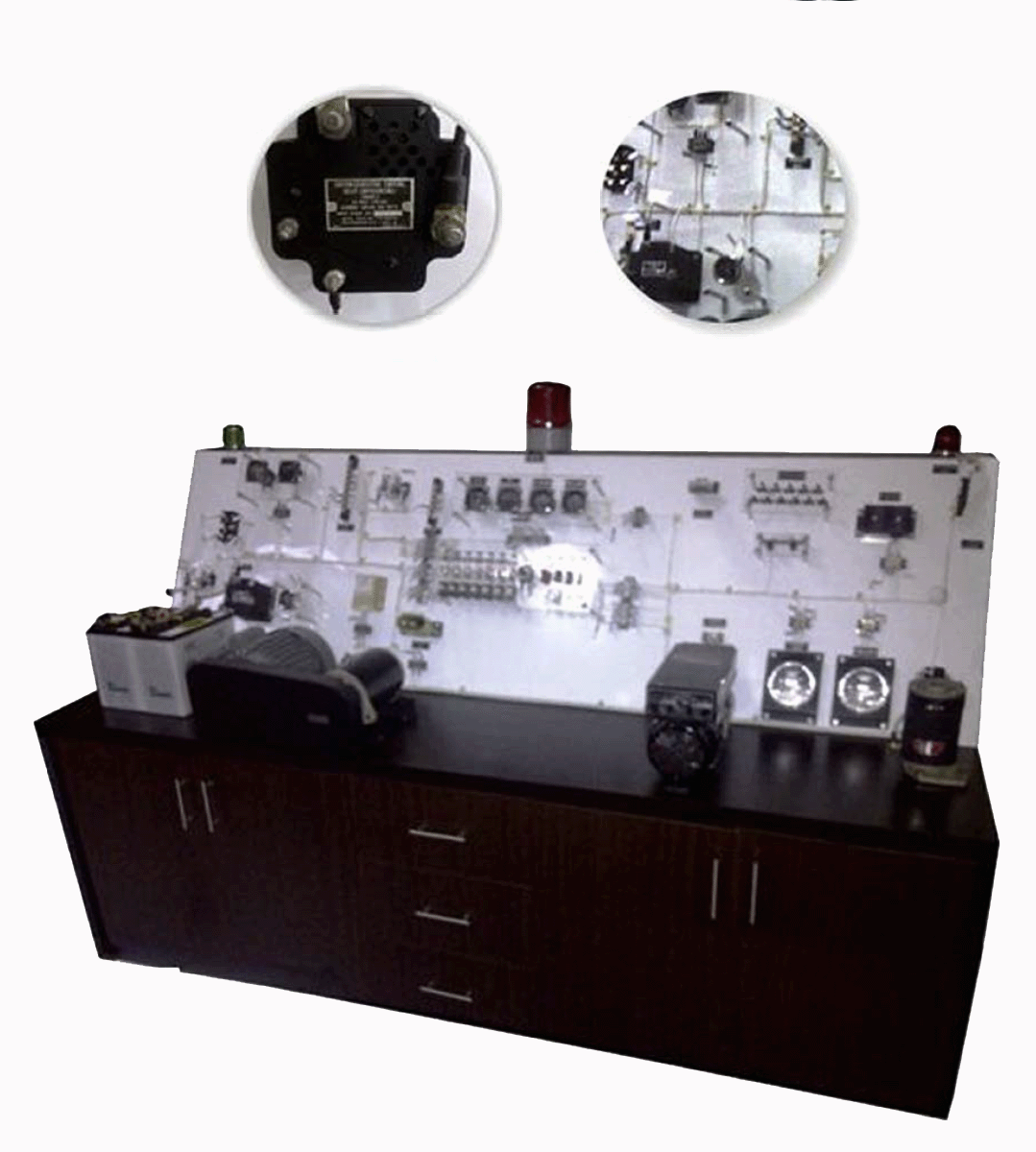

28V Dual Turbine Electrical System
Brand: RAMA TECH
The 28V DUAL TURBINE AIRCRAFT ELECTRICAL SYSTEM TRAINER is a complete and fully functional Trainer System proposed to simulate Electrical System typical in multi-engine commuter, executive turboprop, and jet aircraft.
Features
Ready to Plug in and Operate
Instructor Special Panel to simulate open or short circuit electrical malfunctions.
Instructor manual including student Lab. Practice
Wiring Diagram with standard aircraft wiring code
All components mounted on custom roll-around work stand and cabinet
Components
Dual 28 Volt Starter - Generator/Alternator System including Battery, and APU Plug.
Split Bus Current Distribution System
Relevant Cockpit electrical components including gauges, switches, and circuit breakers.
DC Navigation lights with flasher unit.
Landing, Taxi light, and Rotating Beacon.
Voltage Regulator and Reverse Current Relay to control alternator or generator
115 Volt/400 Hz AC Current System with dual Inverters
Stall warning system and horn
Fuel quantity indicator
Pitot Heater
Requirements
220 Volt AC Power Input
Dimensions L x W x H (mm): 3,000 x 1,000 x 1,250
