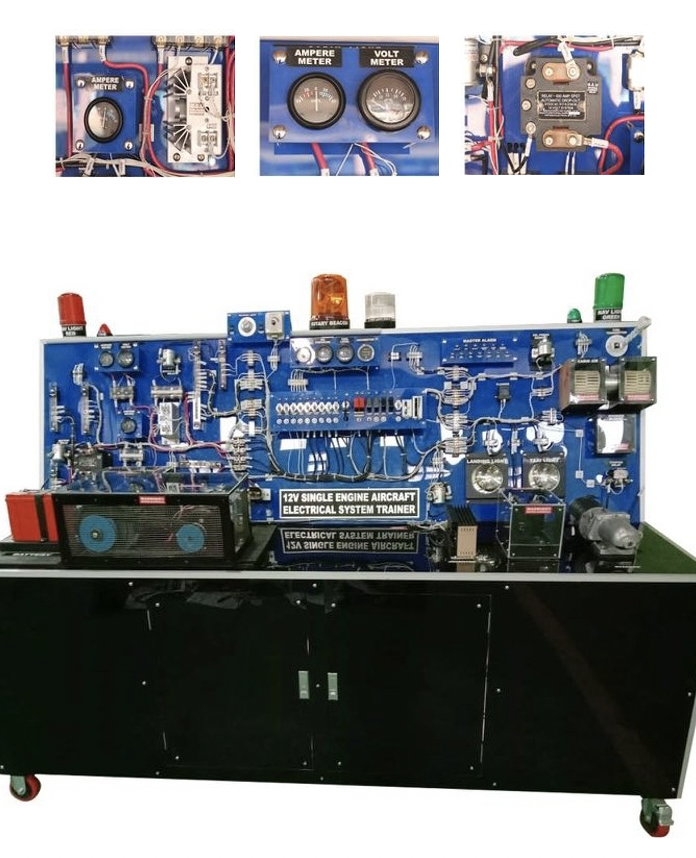

12 V Aircraft Electrical System Trainer

The 12 V Aircraft Electrical System Trainer is a complete and fully functional trainer system proposed to simulate the electrical system in a light single-engine aircraft flying today.

Features

• Ready to Plug in and Operate

• Instructor Special Panel to simulate open or short circuit electrical malfunctions.

• Instructor manual including student Lab. Practice

• Wiring Diagram and standard aircraft wiring code

• All components mounted on custom roll­-around work stand and cabinet

Components

• 12 Volt DC Current System.

• 12 Volt Battery, Generator or Alternator, and GPU Plug.

• Relevant Cockpit electrical components including gauges, switches, and circuit breakers.

• DC Navigation Lights with flasher unit.

• Landing, Taxi light, and Rotating Beacon.

• Voltage Regulator and Reverse Current Relay to control alternator or generator

• Starter Circuit

• Fuel quantity indicator

• Stall warning

Requirements

• 220 Volt AC Power Input

• Dimensions L x W x H (mm): 2,100 x 850 x 1,250
